Graphite Discs

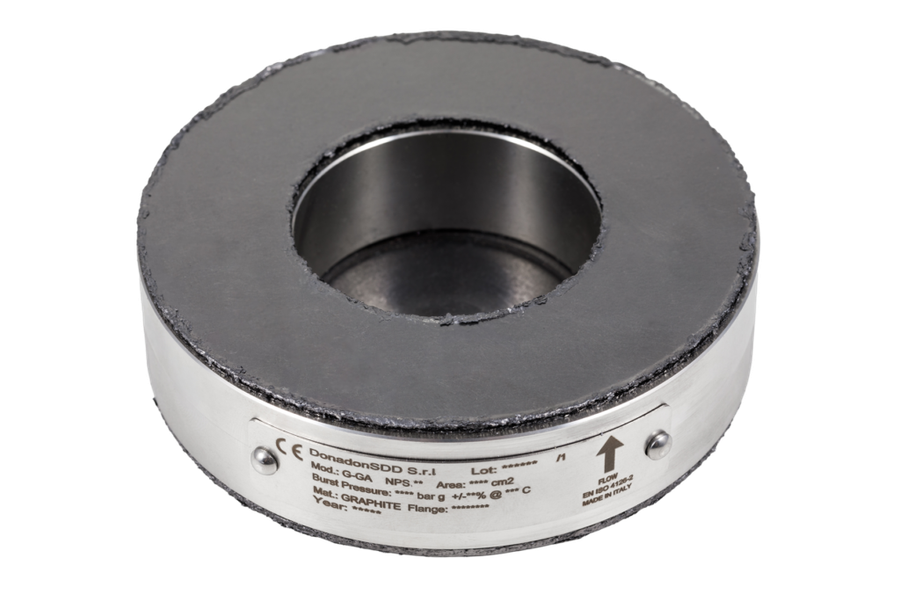

Rupture disc GA Graphite Discs
Safety · Rupture Discs
Manufacturer:
DonadonSDD offers GA rupture discs that are designed to protect industrial plants where particularly aggressive fluids are processed from sudden pressure variations that can cause severe damage. GA Rupture Discs can be mounted directly between flanges and are manufactured in pure graphite, impregnated with phenolic resins to guarantee perfect non- permeability. By the nature graphite bursting discs will fragment upon bursting.
Technical data
- GA
- Rupture Discs
- Materials
- Graphite and Stainless steel
- Dimensions
- From DN25 (1 inch) to DN300 (12 inches)
- Rupture pressure
- 0.1 - 15 bar g (Depending on size and material)
- Tolerance
- from +/- 10 % to +/- 20%
- Operating temperature
- max 200°C
- Fragmentation
- Yes
- Use in combination with PSV
- No
- Operating margin
- Can reach up to 75% depending on service conditions.
- Resistance to vacuum pressure
- Only for pressures above 1.7 bar g.
- Corrosion resistance
- Very Good
- Linings
- Available in PTFE and PFA
- Holder
- Ready to be installed directly between flanges
- Rupture sensor
- Electrical
- Only for pressures above
- 1.7 bar
- Operation Ratio
- up to 75%
- Non Fragmenting
- no
- Sanitary
- no
- Liquid
- yes
